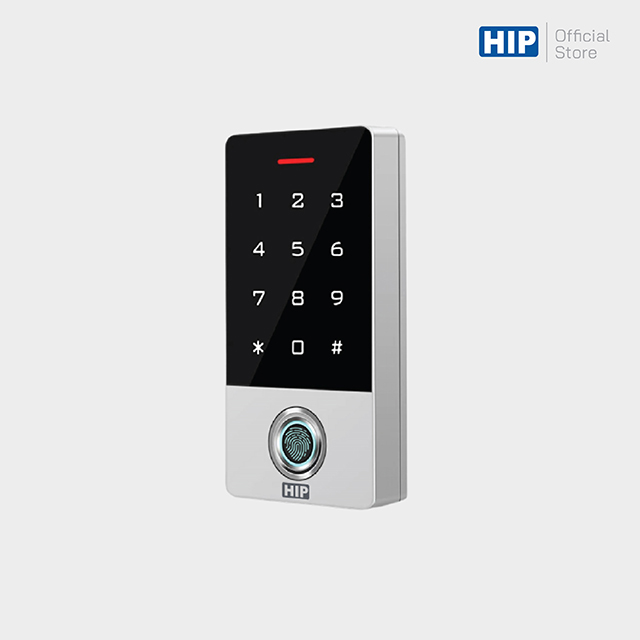

CMG605F |
รองรับผู้ใช้ 10,000 ผู้ใช้ (10,000 บัตร/รหัส และ 600 ลายนิ้วมือ)
รองรับระบU Access Control ควบคุมการเข้าประตู / บัตรความถี่ 125KHz
ควบคุมการเปิดประตูได้ ด้วยบัตร รหัส หรือ APP (HIP IOT)
กันน้ำได้ IP66 ติดตั้งใต้หลังคาที่มีโอกาสโดนฝนสาดได้
รองรับการเชื่อมต่อเครื่องอ่านบัตร Wiegand Input
User Capacity | 10,000 Card / Password and 600 Fingerprint |
Access Mode | Fingerprint / Card / Password / APP |
Card Type | EM(ID Card) |
Reading Frequency | 125 kHz |
Reading Range | 20-50 mm |
Reading Speed | 1S |
Function | Access Control,WG Input / Output |
Door Opening Time | 0-99s(Adjustable) |
Waterproof | IP66 |
Working Temperature | -40?C ~ 60?C |
Humidity | 10%RH -90%RH |
Working Voltage | 12VDC |
Operating Current | ?100mA |
Product Weight | 0.45kg |
Product Dimension | 70 x 20 x 139mm |
CMG606F ![]() |
รองรับผู้ใช้ 1,000 ผู้ใช้ (1,000 บัตร/รหัส และ 100 ลายนิ้วมือ)
รองรับระบU Access Control ควบคุมการเข้าประตู / บัตรความถี่ Mifare 13.56 MHz
ควบคุมการเปิดประตูได้ ด้วยบัตร รหัส หรือ APP (HIP IOT)
กันน้ำได้ IP66 ติดตั้งใต้หลังคาที่มีโอกาสโดนฝนสาดได้
รองรับการเชื่อมต่อเครื่องอ่านบัตร Wiegand Input
User Capacity | 1,000 User (1,000 User/Password and 100 Fingerprint) |
Access Mode | Fingerprint/Card/Password/APP |
Card Type | Mifare |
Reading Frequency | 13.56 MHz |
Reading Range | 10~30 mm |
Reading Speed | 1 S |
Function | Access Control, WG Output, APP Via |
Waterproof | IP65 |
Working temperature | -40 ํC ~ -60 ํC |
Humidity | 10%RH-90%RH |
Working Voltage | 12VDC |
Operating Current | <100mA |
Product Dimension | 70*18*125 mm |
รองรับผู้ใช้ 10,000 ผู้ใช้ (10,000 บัตร/รหัส และ 300 ลายนิ้วมือ)
รองรับระบU Access Control ควบคุมการเข้าประตู
ควบคุมการเปิดประตูได้ ด้วยบัตร รหัส หรือ APP (HIP IOT)
กันน้ำได้ IP66 ติดตั้งใต้หลังคาที่มีโอกาสโดนฝนสาดได้
รองรับการเชื่อมต่อเครื่องอ่านบัตร Wiegand Input
Model | CMG608F |
CMG608F-MF |
User Capacity |
10,000 User (10,000Card / Password and 300 Fingerprint) |
10,000 User (10,000Card / Password and 300 Fingerprint) |
Access Mode |
Fingerprint / Card / Password/APP |
Fingerprint / Card / Password/APP |
Card Type |
EM(ID Card) |
Mifare Card |
Reading Frequency |
125 kHZ |
13.56 MHZ |
Reading Range |
20~50 mm |
10~50 mm |
Reading Speed |
<IS |
<IS |
Function |
Access Control , WG Input/ Output |
Access Control , WG Input/ Output |
Door Opening Time |
0-99s(Adjustable) |
0-99s(Adjustable) |
Waterproof |
IP66 |
IP66 |
Working temperrature |
-4?C~ 60?C |
-40?C ~ 60?C |
Humidity |
10%RH -90%RH |
10%RH -90%RH |
Working Voltage |
12VDC |
12VDC |
Operating Current |
?100mA |
?100mA |
Product Dimension |
47*24*135mm |
47*24*135mm |
Ci805u |
Ci690s |
เครื่องสแกนลายนิ้วมือ บันทึกเวลา
Ci690s สแกนลายนิ้วมือ+บัตรทาบ
![]() |
เครื่องสแกนลายนิ้วมือ บันทึกเวลา
HIP Ci809u สแกนลายนิ้วมือ+บัตรทาบ
CMG270 |
Ci690s
|
Ci805u
|
Ci809u
|
Ci806u |
![]() |
![]() |
CMi F60 |
CMIF63 |
CMG601
|
size 84x54x0.8 mm.
Work frequency 125KHz.
Capability 64bit Read only
Temperature
Operating -40'c -85'c
Operating Humidity 5-95%
size 84x54x1.8 mm.
Work frequency 125KHz.
Capability 64bit Read only
Temperature
Operating -40'c -85'c
Operating Humidity 5-95%
Remote Control |
Emergency
|
Emergency Door Release อุปกรณ์เพื่อความปลอดภัย
อุปกรณ์ออกจากพื้นที่ ปุ่มกดเปิดประตูฉุกเฉิน ทุบกระจกให้แตกประตูคีย์การ์ดจะเปิดทันที
![]() |
![]() |
Access Control Lift
|
Access Control Lift |
สามารถกำหนดสิทธิ์ให้แต่ละคนสามารถกดลิฟท์เลือกชั้นที่มีสิทธิ์เท่านั้น One Software One Database
WIEGAND ACCESS CONTROL 7.75 ง่ายสำหรับการจัดการ,
PHONIK-IP PBX |
KX-TES824
|
KX-NS300 |
![]() |
|
Hotel Lock |
รายละเอียดสินค้าอื่นฯเพิ่มเติม
