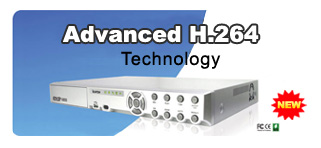

H.264 SDVR-810 SDVR-610 ICATCH

ICATCH SDVR-810 SDVR-610

H.264

  • SDVR-810 เครื่องบันทึก 8 CH
  • SDVR-610 เครื่องบันทึก 16 CH
  • Made in Taiwan

-เป็นfile ที่คุณภาพบีบอัดได้ดีกว่าเเละชัดกว่าไฟล์ MPEG-4
-คุณภาพ ภาพที่ออกมาเล็กกว่าเเละชัดกว่าถึง 3 เท่าของ  MPEG-4
ความละเอียดภาพสูงทั้งเรียลไทม์ เเละเพลย์เเบล็ค
-ใส่HDD ได้ 2 ลูกลูกละ 1000 GB SATA
-MENU GUI เป็นรูปภาพ ใช้งานง่าย /สามารถใช้ MOUSE  ได้
-SUPPORT Schedule สามารถตั้งกำหนดการ Record ได้ตลอดปี
-PICTURE IN PICTURE /MONITOR อิสระ
-SETUP ผ่าน ตัวเครื่องระบบ Network ได้/ control อิสระ จากตัวเครื่อง

H.264 DVR based on hardware codec

-240 fps recording @CIF

-3G/GPRS mobile surveillance (Mobile and Symbian system)

-Network support

-Unique AP software, with exactly the same interface as local DVR for remotely control

-LCD touch panel ready

-Direct Playback from PC with HDDs Linked
-R.B.E.R.= Remote Backup on Event Recording
-Video File sent along with Email Alert & FTP Upload
-SATA II Compatible HDD

-UPS alarming functions to notify the physical proble

-Intelligent 3G/GPRS mobile surveillance on all operating systems
-Support smart search function for faster and easier playback retrieval
-Picture-in-Picture Display & Channel Screen Popup on Motion/Sensor
-Optional 1-to-8 remote controller for access up to 8 DVRs with one single remote controller
-Role-based Multiple network Users Access to Exclusive Channel View & Operation
-Provide optional touch screen display integrated with LCD for a combo LCD DVR for direct touch operation without accessing the remote controller
-With 750G HDD storage, the recording length up to 1500hours with full recording speed without missing any important display images
-Provide disk array option with mirror functionality to provide addditional storage archival without missing any display images
-Provide Graphical User Interface(GUI) and mouse access for easier and user friendly configuration and operation




Specifications

Model
SDVR-410
SDVR-810
SDVR-610
Video Input (NTSC/PAL)
4
8
16
Video Compression
H.264 (Internet transmission:H.264)
Video Output (VGA optional)
BNC x1 , VGA x 1
Audio Input
RCA X 4
Audio Output
RCA X 1
Sensor In / Alarm Out
4 Sensor in/1 Alarm out
8Sensor in/1 Alarm out
16 Sensor in/1 Alarm out
Display
Speed
100/120 fps
200/240 fps
400/480 fps
Resolution (pixels)
720 x 480 (NTSC), 720 x 756 (PAL)
Split Screen
1/4SEQ
1/4/6/8/SEQ
1/4/8/13/16/SEQ
Mode
Zoom x 2, PIP, Auto SEQ
Recording
Resolution (pixels)
NTSC: 720x480, 720x240, 360x240 PAL: 720x576, 720x288, 352x288
Picture Quality
5 Levels (Highest, High, Normal, Low, lowest )
Mode
Normal, Motion, Alarm, Schedule
Speed
NTSC: 60fps(720x480), 120fps(720x240), 240fps(360x240)
PAL: 50fps(720x576), 100fps(720x288) , 200fps (360x288)
Playback
Display
1,4
1,4,8
1,4,9,16
Speed
NTSC: 30fps(720x480), 60fps ( 720x240), 120fps(360x240)
PAL: 25fps (720x576), 50fps ( 720x288), 100fps (360x288)
Search
Time , Event, Calendar
Speed
Normal, REW & FF (2x, 4x, 8x, 16x, 32x, 64x), Pause
Device
Support up to 2 internal SATA HDDs or
# 1 SATA HDD & 1 e-SATA External DVD-Writer
Support up to 3 internal SATA HDDs or 2 internal SATA HDDs & 1 e-SATA External DVD-Writer
Pre-alarm Recording
16MB (10 secs )
Backup Device
USB 2.0, SATA CD Writer, SATA DVD writer, Remote Network Backup
Image format output H.264
OSD
GUI ( Graphical user interface)
DVR control
Remote Control, USB Mouse, USB Touch Panel
3G/GPRS
Built-In 3G, supports Windows Mobile 5.0/ 6.0 and Symbian (Nokia and Sony/Ericsson)
Power
External Adaptor, AC100-240V/in, DC12V(5A)

------------------------------------------------------------------------------------------------------------
