เครื่องบันทึกภาพดิจิตอล CPD-507HC |
 |
เครื่องบันทึกภาพดิจิตอล CPD-507HC |
 |
|

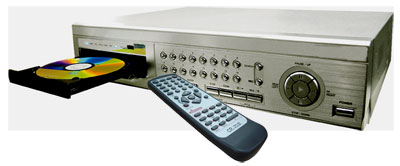

CPD-507HC
- MPEG-4 real time compression format
- Extensive recording time
- Remote surveillance via internet connection
- Support up to 3 HDD accommodation, or 2 HDD accommodation + 1 independent disk array
- Easy file backup methods with USB flash drive, network & CD-RW drive backup
- Alarm trigger recording will send alert with images to designated e-mail and FTP address
- Support pre-alarm recording (8MB)
- Advanced motion detection function and convenient search function.
- Support multi-language OSD
- Multiplex function (recording, view live, playback, web function, and more)
- Web function supports MJPEG compression format for transmitting over the internet
- R emote E vent T rigger R ecording.
- Web surveillance supports multiple viewers simultaneously
- Support covert screen for live view channels
- IR remote control of the system and PTZ through RS-485
- Support PELCO-D protocol
- Hot point to control the PTZ
- Optional : Independent Disk Array; VGA connector
เครื่องบันทึกภาพ CCTV CPD 507 DVR 16 CH 400f/s MPEG4 Ethernet
SPECIFICATION |
|
Model |
CPD 507 |
Video Format |
NTSC/ PAL |
Video Compression Format |
16 Channels, Composite video signal 1 Vp-p 75 BNC |
Video Loop Out |
16 Channels, Composite video signal 1 Vp-p 75 BNC |
Video Output |
Main Monitor Output: Composite video signal 1 Vp-p 75 BNC |
VGA Monitor Output: 15-pin D-sub (optional) |
Call Monitor Output: Composite video signal 1 Vp-p 75 BNC |
Audio I/O |
4 audio inputs, 2 audiooutputs (mono) |
Hard Disk Storage |
IDE type, ATA66, supported more than 400 GB HDD X 2 |
Recording Mode |
Manual/ Timer/Motion/Alarm |
Recording Rate |
Frame: 720 X 480 pixels with 120 IPS (NTSC) / 720 X 576 pixels with 100 IPS (PAL) |
Field: 720 X 240 pixels with 240 IPS (NTSC) / 720 X 288 pixels with 200 IPS (PAL) |
|
CIF: 352 X 240 pixels with 480 IPS (NTSC) / 352 X 288 pixels with 400 IPS (PAL) |
|
Video Loss Detection |
Yes |
Refresh Rate |
480 frames per sec. for NTSC / 400 frames per sec. for PAL |
Multiplex Operation |
Multiplex Operation (Recording, Live, Playback, and Remote Viewing via Network) |
Motion Detection Area |
16 X 12 grid per camera / 16 camera |
Motion Detect Sensitivity |
Level Sensitivity (LS) / Temporal Sensitivity (TS) / Spatial Sensitivity (SS)/ Reference (RE) |
Backup Device |
DVD R/W (optional), CD R/W (optional), USB 1.1 Backup, Network Remote Backup |
Remote Transmitting Compression Format |
Motion JPEG |
USB Interface |
Support 2 USB 1.1 ports |
Alarm I/O |
16 inputs, 1 outputs |
Remote Alarm Notification |
Remote Event Triger Recording, E-mail images, and Images Uploading to FTP Sites's Specific Account |
Video Loss Detection |
Yes |
Web Interface |
Support GPRS, specified software, IE Browser |
Remote Control |
Remote control DVR and PTZ via IR transmitter |
PTZ |
Support PELCO-D protocol |
Ethernet |
10/100 Base-T, Support Remote Control and Live View via Ethernet |
Dwell Time (Sequential Channel Switch) |
Programmable with Adjustable Dwell time |
Picture in Picture |
Yes (Movable) |
Key Lock |
Yes |
Picture Zoom |
Support 2-time digital zoom function |
Camera Title |
Support up to 6 letters |
Video Adjustable |
Hue/Color/ Contrast/ Brightness |
Time Display Format |
YY/MM/DD, DD/MM/YY, MM/DD/YY, OFF |
Power Source |
DC 19V |
Power Consumption |
<64W |
Operation Temperature |
10 ~ 40? |
Dimension (mm) |
432mm(W) x 90mm(H) x 326mm(D) |
Language |
Chinese/ English |
SCSi Connector |
SCSI connector for additional backup devices |
Watch Dog |
Yes |
System Recovery |
Auto power on after power recovery |
----------------------------------------------------------------------------------------------------------------------------------
