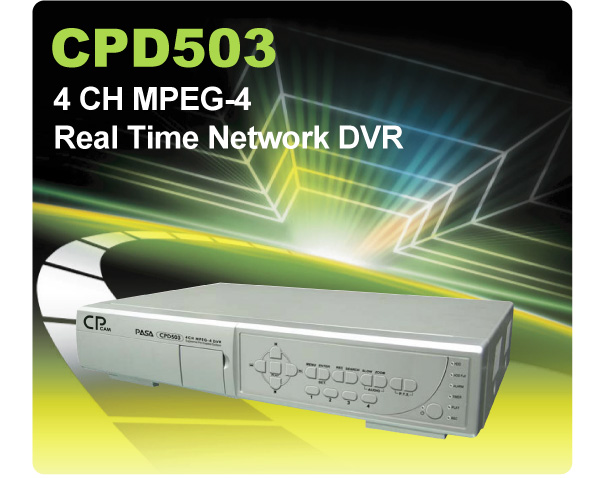

| MODEL |
CPD503 |
| Video System |
NTSC/PAL (switchable) |
Video Compression
Format
|
MPEG-4 |
| Video Input |
4 Channels.Composite video signal 1 Vp-p 75 BNC
|
| Video Loop Out |
4 Channels.Composite video signal 1 Vp-p 75 BNC
|
| Video Output |
Main Monitor Output :Composite video signal 1 Vp-p 75 BNC
Call Monitor Output :Composite video signal 1 Vp-p 75 BNC
|
| Maximum Recording Rate |
Frame:720 480 pixels with 120 IPS NTSC /720 576 pixels with 100 IPS PAL
CIF:352 240 pixels with 480 IPS NTSC /352 288 pixels with 400 IPS PAL
|
Adjustable Recording Speed
|
Frame:30,15,7,3 IPS <NTSC>/25,12,6,3 IPS <PAL>
CIF:120,60,30,15 IPS <NTSC>/100,50,25,12 IPS <PAL>
|
Image Quality Setting
|
Best,High,Normal,and Basic
|
| Hard Disk Storage |
IDE type,ATA66, HDD x 1 supported, capacity over 400GB
|
| Support SATA HDD |
Yes |
| Recording Mode |
Manual / Timer / Motion / Alarm
|
| Watermark |
Yes |
| Refresh Rate |
NTSC: 120 frames per sec. PAL: 100 frames per sec.
|
Audio I/O
|
4 audio inputs,2 audio outputs (Mono)
|
| Motion Detection Area |
16 x12 grid per camera |
| Pre-alarm Recording |
Yes (8 MB Ram) |
| Backup Device |
USB1.1 backup and network backup |
| R.E.T.R. |
Support Remote Event Trigger Recording
|
| Web Transmitting Compression Format |
Motion JPEG
|
| Ethernet |
10/100 Base-T.Support remote control and live view via Ethernet
|
Mobile Surveillance
|
Support GPRS access via mobile phone (J2ME,MIDP2.0 protocol required)
|
Web Interface
|
AP and IE browser (licensed software required)
|
Remote Alarm Notification
|
E-mail images and images uploading to FTP
|
Network Connection
|
Support static IP,dynamic IP,and DHCP with DDNS function
|
USB Interface
|
Support 2 USB 1.1 ports (front panel *1,back panel *1)
|
Remote Control
|
Remote control DVR and PTZ via IR transmitter
|
PTZ control
|
Support PELCO-D protocol
|
Dwell Time (Sequential Channel Switch)
|
Programmable with adjustable dwell time
|
| Alarm I/O |
4 inputs,1 output |
